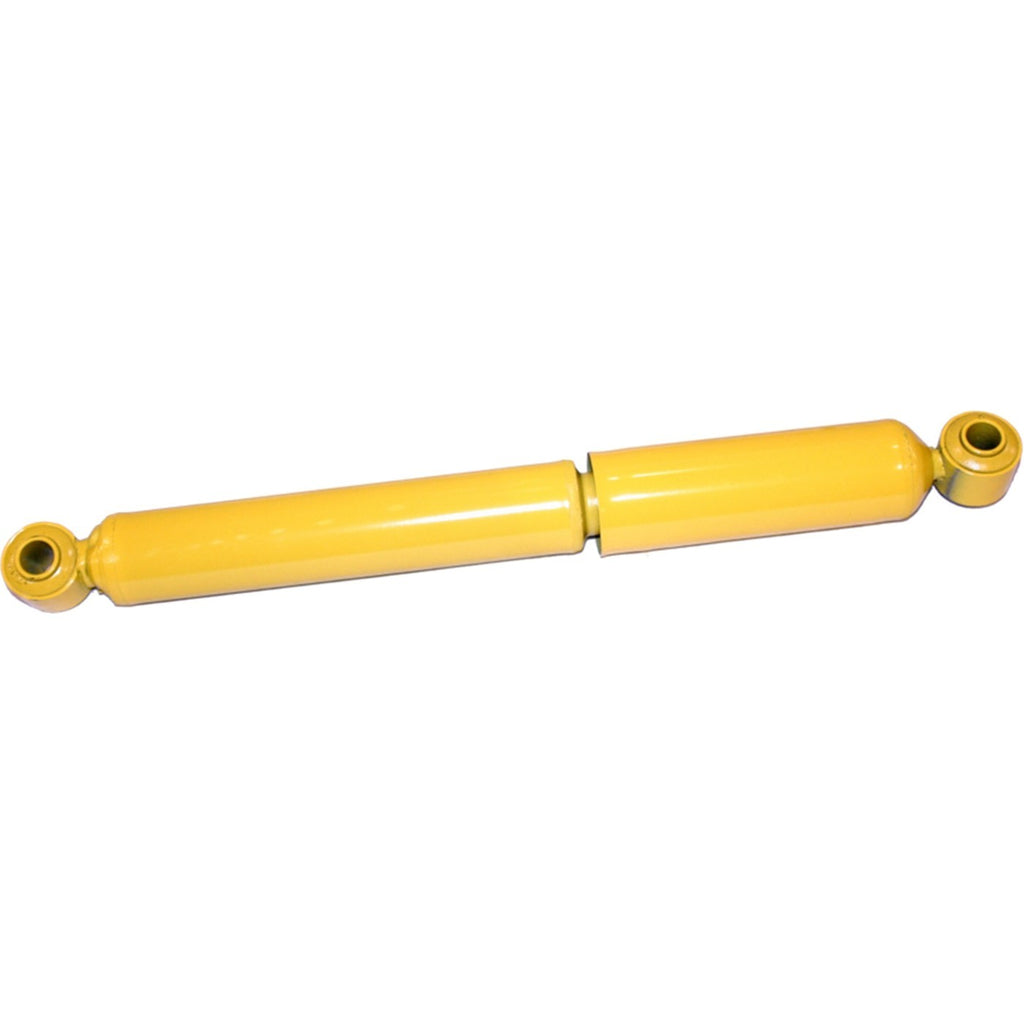

Monroe 2017-2024 Freightliner, International Harvester, Kenworth, Mack & Peterbilt Shock Absorbers - Front & Rear, Driver & Passenger Side (10148)
2
sold in last
8
hours
$82.08
$71.37
- Brand New in the Box
- Fitment Guaranteed
- 14-Day Returns
- Free U.S. Shipping
customers are viewing this product
Monroe Shock Absorber and Strut Assembly
MONROE – GAS-MAGNUM 60 SHOCK ABSORBERS
Enjoy a smooth, stable ride with the optimally charged design and quick, consistent responsiveness of Monroe’s Gas-Magnum 60 shock absorbers. Founded in 1916, Monroe manufactures top-quality OE replacement shock absorbers, struts and mounts for the automotive aftermarket.
- 10-stage full displaced valving maintains optimum ride control and comfort
- Nitrogen gas charging facilitates ideal tire-to-road contact by diminishing aeration
- 5/8-inch nitrocarburized piston rod engineered to provide extended lifespan
- Reserve tube’s size increased to 2 inches or 2 3/8 inches
- 1 3/8-inch bore enables shock to operate at lower pressure
- 9,500 pounds of tensile strength provided by arc-welded mounts
- Friction lessened and service extended by multi-lip oil seal
Brand New in the Box - Fit and Quality Guaranteed!
| Condition | New |
| Design | Twin-tube |
| Series | Magnum Series |
| Type | Shock |
| Collapsed Length | 13.38 in. Collapsed Length |
| Extended Length | 20 in. Extended Length |
| Lower Mount Style | Loop Lower Mount Style |
| Upper Mount Style | Loop Upper Mount Style |
| Anticipated Ship Out Time | 2-3 business days |
| Quantity Sold | Sold Individually |
| Product Fit | Direct Fit |
| Replaces OE Number | 10148, 665174, 665265, 90044083, 57366636, M83127, AMS650433, RCSA3127, 6026, L57661, 90044915, 90045083, NW90044979, 57365433, 85326, 345608, 1083204, 600130MT, 665267, AMS600130, 2096001, 537524C91, 6877, 90044642, 3197642, L59030, SA3127, 727604, 661130, E85029, 434236, 83204, 59024, 650433MT, 90044681, AMS660130, E83204, 728631, 16335, 665109, 8150371, 57306895, 4940610, B23316, 438031, 317964, 601130, L57649, 680570, 3043, 341628, S2212, 85910, 3178165, 78530771, 83127, 3166287, 5521698 |
| Manufacturer Part Number (MPN) | 66636 |
| Color/Finish | Yellow |
| Recommended Use | OE Replacement |
| Damping Type | Non-Adjustable |
| Gas Charged | Gas Charged |
| Interchange Part Number | JP28030004, 10148, 665174, 665265, 90044083, 57366636, M83127, AMS650433, RCSA3127, 6026, L57661, 90044915, 90045083, NW90044979, 57365433, 85326, 345608, 1083204, 600130MT, 665267, AMS600130, 2096001, 537524C91, 6877, 90044642, 3197642, L59030, SA3127, 727604, 661130, E85029, 434236, 83204, 59024, 650433MT, 90044681, AMS660130, E83204, 728631, 16335, 665109, 8150371, 57306895, 4940610, B23316, 438031, 317964, 601130, L57649, 680570, 3043, 341628, S2212, 85910, 3178165, 78530771, 83127, 3166287 |
| Prop 65 Warning | WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Compatible with the following vehicles:
Freightliner
- 2001, 2003-2020 Coronado 132 Rear, Left or Right Side, Replaces OE # 665174, With 46,000 Lb. Chalmers Suspension
- 2002 Coronado Base Rear, Left or Right Side, Replaces OE # 665174, With 46,000 Lb. Chalmers Suspension
- 2010-2012 Coronado 122 Rear, Left or Right Side, Replaces OE # 665174, With 46,000 Lb. Chalmers Suspension
- 2009-2019 M2 106 Base Front, Left or Right Side, Replaces OE # 1013760000, With 8,000 Lb. to 16,000 Lb. Front Axle, Tapered Leaf Spring
GMC
- 75-78 G35 (submodel: Magnavan, Rally Camper Special, Vandura Special) Rear, Left or Right Side, Cutaway Van, Tag Axle, Replaces OE # 90044769, 90044770, With Neway Tag Axle TA-3-CA, With Recreational Package
- 79-92 G3500 (submodel: Magnavan, Rally Camper Special, Vandura Special) Rear, Left or Right Side, Cutaway Van, Tag Axle, Replaces OE # 90044769, 90044770, With Neway Tag Axle TA-3-CA, With Recreational Package
International
- 2018-2024 HX520 Base Rear, Left or Right Side, Replaces OE # 3516764C1, 665174, With Chalmers 800 Series Suspension
Kenworth
- 2010-2020 T400 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 87-2021 T800 Base Rear, Left or Right Side, Replaces OE # 665174, 800670, With 40,000 Lb. Chalmers Suspension
Mack
- 2024 MD6 Base Front, Left or Right Side, DIESEL,Replaces OE # 78530771, With 10,000 Lb. - 12,000 Lb. Tapered Leaf Spring
- 2024 MD6 Base Front, Left or Right Side, ELECTRIC,Replaces OE # 78530771, With 10,000 Lb. - 12,000 Lb. Tapered Leaf Spring
- 2021-2022 MD6 Base Front, Left or Right Side, Replaces OE # 78530771, With 10,000 Lb. - 12,000 Lb. Tapered Leaf Spring
- 2021-2024 MD7 Base Front, Left or Right Side, Replaces OE # 78530771, With 10,000 Lb. - 12,000 Lb. Tapered Leaf Spring
Peterbilt
- 86-2008 357 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 81-2006 362 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2008-2018 365 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2008-2018 367 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 89-95, 97 372 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 87-96 375 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 88-92, 94-96, 99 376 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 87-2001 377 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 88-2007 378 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 86-2007 379 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2008-2016 384 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 96-2007 385 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2006-2015 386 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2000-2011 387 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2008-2018 389 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2014-2020 567 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
- 2011-2015 587 Base Rear, Left or Right Side, Replaces OE # 665174, With 40,000 Lb. Chalmers Suspension
Read More
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2024 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 12.4L 758Cu. In. l6 DIESEL SOHC Turbocharged |
| 2024 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2024 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 12.4L 758Cu. In. l6 DIESEL SOHC Turbocharged |
| 2024 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2024 | Mack | MD6 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2024 | Mack | MD6 | Base Straight Truck - Medium Conventional | ELECTRIC |
| 2024 | Mack | MD7 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2023 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 12.4L 758Cu. In. l6 DIESEL SOHC Turbocharged |
| 2023 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2023 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 12.4L 758Cu. In. l6 DIESEL SOHC Turbocharged |
| 2023 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2023 | Mack | MD7 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2022 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2022 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2022 | Mack | MD6 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2022 | Mack | MD7 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2021 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2021 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2021 | Kenworth | T800 | Base Straight Truck - Long Conventional | 10.8L 659Cu. In. l6 DIESEL |
| 2021 | Kenworth | T800 | Base Straight Truck - Long Conventional | 12.9L 787Cu. In. 6 DIESEL |
| 2021 | Kenworth | T800 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2021 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 10.8L 659Cu. In. l6 DIESEL |
| 2021 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 12.9L 787Cu. In. 6 DIESEL |
| 2021 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2021 | Kenworth | T800 | Base Tractor Truck - Long Conventional 2-Door | 10.8L 10834CC 661Cu. In. l6 DIESEL OHV Turbocharged |
| 2021 | Kenworth | T800 | Base Tractor Truck - Long Conventional 2-Door | 12.9L 787Cu. In. l6 DIESEL OHV Turbocharged |
| 2021 | Mack | MD6 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2021 | Mack | MD7 | Base Straight Truck - Medium Conventional | 6.7L 408Cu. In. l6 DIESEL Turbocharged |
| 2020 | Freightliner | Coronado | 132 Gliders - Long Conventional | -- |
| 2020 | International Harvester | HX520 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2020 | International Harvester | HX520 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T400 | Base Straight Truck - Long Conventional | 8.9L 8849CC 540Cu. In. l6 CNG |
| 2020 | Kenworth | T400 | Base Straight Truck - Long Conventional | 8.9L 8849CC 540Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T400 | Base Tractor Truck - Long Conventional | 8.9L 8849CC 540Cu. In. l6 CNG |
| 2020 | Kenworth | T400 | Base Tractor Truck - Long Conventional | 8.9L 8849CC 540Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T800 | Base Straight Truck - Long Conventional | 10.8L 10834CC 661Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T800 | Base Straight Truck - Long Conventional | 10.8L 659Cu. In. l6 DIESEL |
| 2020 | Kenworth | T800 | Base Straight Truck - Long Conventional | 11.9L 726Cu. In. 6 DIESEL |
| 2020 | Kenworth | T800 | Base Straight Truck - Long Conventional | 12.9L 787Cu. In. 6 DIESEL |
| 2020 | Kenworth | T800 | Base Straight Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 10.8L 10834CC 661Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 10.8L 659Cu. In. l6 DIESEL |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 11.9L 726Cu. In. 6 DIESEL |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 12.9L 787Cu. In. 6 DIESEL |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional | 14.9L 912Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional 2-Door | 10.8L 10834CC 661Cu. In. l6 DIESEL Turbocharged |
| 2020 | Kenworth | T800 | Base Tractor Truck - Long Conventional 2-Door | 12.9L 787Cu. In. l6 DIESEL OHV Turbocharged |
| 2020 | Peterbilt | 567 | Base Straight Truck - Long Conventional | 10.8L 659Cu. In. l6 DIESEL |
| 2020 | Peterbilt | 567 | Base Straight Truck - Long Conventional | 11.9L 726Cu. In. 6 CNG |
| 2020 | Peterbilt | 567 | Base Straight Truck - Long Conventional | 11.9L 726Cu. In. 6 DIESEL |
